Dimensions of Halls
HUPRO® system allows you to overlay space width from 9 m to 50 m without any additional supporting structure, while width, height and length of a hall can be freely adjusted according to your requirements. For your better orientation, we offer you a table of basic types of halls.

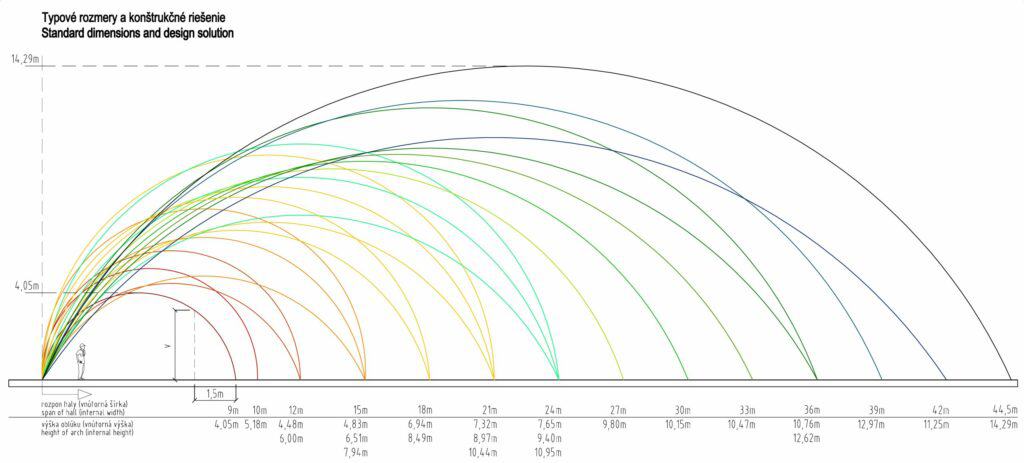

Dimensions and parameters
| type - w x h (m) | h (m) | length of curve (m) | front area (m2) | DWG | |
|---|---|---|---|---|---|
| 9 / 4,05 | 2,90 | 14,0 | 34,3 |  |
 |
| 10 / 5,18 | 3,73 | 16,8 | 49,6 | |
|
| 12 / 4,48 | 2,55 | 16,8 | 45,7 | |
|
| 12 / 6,0 | 3,96 | 19,6 | 67,4 | |
|
| 15 / 4,83 | 2,21 | 19,6 | 62,8 | |
|
| 15 / 6,51 | 3,53 | 22,4 | 87,4 | |
|
| 15 / 7,94 | 4,94 | 25,2 | 111,3 | |
|
| 18 / 6,94 | 3,12 | 25,2 | 108,5 | |
|
| 18 / 8,49 | 4,45 | 28,0 | 137,5 | |
|
| 21 / 7,32 | 2,74 | 28,0 | 130,5 | |
|
| 21 / 8,97 | 3,96 | 30,8 | 164,9 | |
|
| 21 / 10,44 | 5,31 | 33,6 | 198,1 | |
|
| 24 / 7,65 | 2,42 | 30,8 | 153,2 | |
|
| 24 / 9,40 | 3,54 | 33,6 | 193,4 | |
|
| 24 / 10,95 | 4,78 | 36,4 | 231,7 | |
|
| 27 / 9,80 | 3,15 | 36,4 | 222,9 | |
|
| 30 / 10,15 | 2,81 | 39,2 | 253,3 | |
|
| 33 / 10,47 | 2,54 | 42,0 | 284,2 | |
|
| 36 / 10,76 | 2,31 | 44,8 | 315,6 | |
|
| 36 / 12,62 | 3,14 | 47,6 | 377,3 | |
|
| 39 / 12,97 | 2,88 | 50,4 | 396,2 | |
|
| 42 / 11,25 | 2,01 | 50,4 | 361,5 | |
|
| 44,5 / 14,29 | 2,79 | 57,4 | 509,8 | |
|
